Skimmer Products

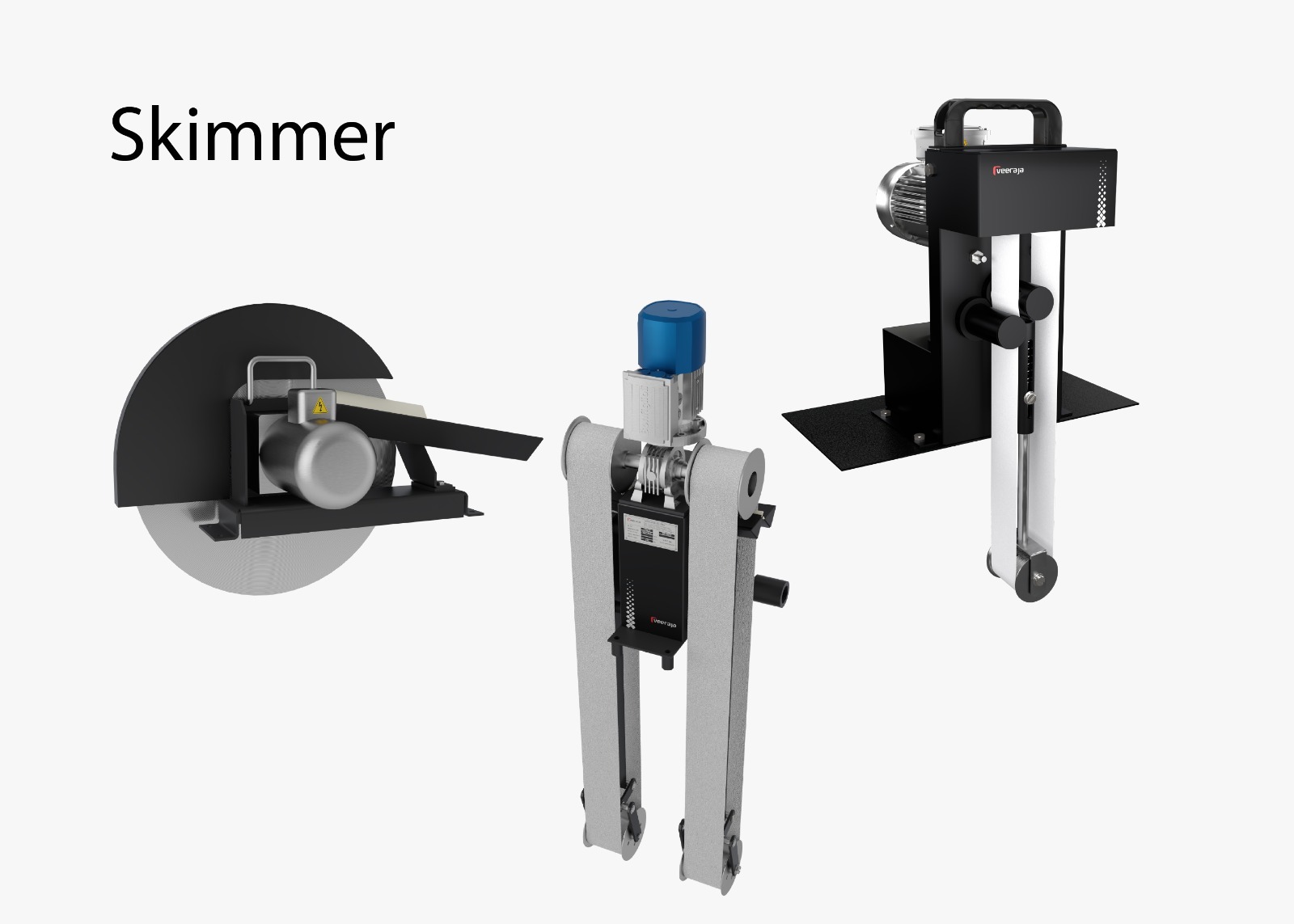

Skimmer

Standard where the requirements are similar for various customers. This helps us in sizing the product to a standard arrangement, keeping the prices low. A detailed catalogue with dimensional and technical information is available for download for such products.

Customized where the combination of product modules are selected, sized and placed as per customer specific requirement. A quick glance through the product selector segment will help you in selecting a suitable product. We are always there to guide you personally.

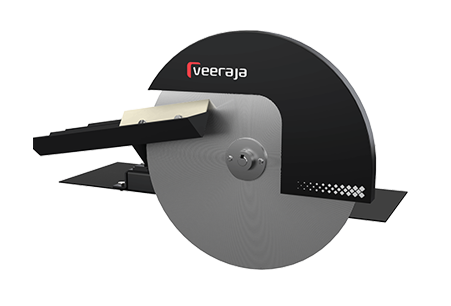

Disk Type Oil Skimmer

A disc skimmer is very useful for small tanks with no level variations. Due to robust and simple design it is generally preferred for small individual tanks. This type of skimmer uses disc instead of belt. The skimmer frame structure is mounted on the top of tank coolant collection tank. A stainless steel disc is dipped in coolant surface from top of the tank. The Disc rotates in clockwise direction. Oily scum adheres to the disc surface and wiped and dumped in scum arresting bin. Disc Skimmers using steel discs of Dia-350MM (Depth 100MM) Model. We also provide Split type using disc Dia-425MM (Depth 250MM) with Chain drive mechanism to split the Disc from motor center to shift the Disc downwards to get more depth using same disc dia. All small models are having built with decanter tray arrangement to further separate the oil from the collect Skimmed mixture and water ETC mixture to return back the coolant, Washing liquid etc. back to the tank. Only pure oil is collected.
